Universal Testers



Tinius Olsen - Single Column

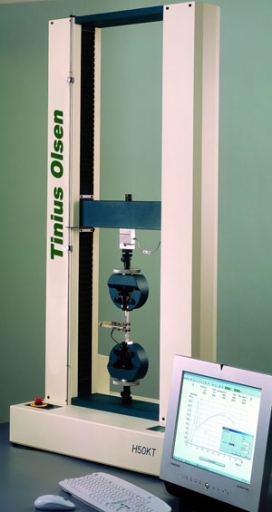

The dual column materials testing machines have frame capacities of 10kN, 25kN and 50kN (2000 lbf, 5,000 lbf and 10,000lbf) and include two model types, the S series and the T series. These machines are designed to test a wide range of materials in tension, compression, flexure, shear and peel. S Series
Using a combination of quality engineering and advanced technology, Tinius Olsen offers a series of machines that are accurate and simple to use. All S series machines feature an easy-to-read backlit liquid crystal display which can be switched between a numerical and graphical display. All data shown on this display is obtained in real time, with the autoranging graphical display showing the test curve of the specimen under test. The control unit features dedicated keys for moving the crosshead up, down, stop, performing the test as well as keys for load and extension tare and crosshead return. The control panel also features an alpha-numeric keypad to allow the input of test conditions, test data and the formatting of the test report. The control unit can retain up to five separate test routines for easy and rapid recall.
Powerful as stand-alone units, the machine capability is enhanced by direct connection of a printer through which comprehensive test reports and high resolution graphs can be quickly obtained. The S series of testers are also designed for users all over the world...an optional language module can be plugged into the control panel and all data on the backlit LCD display will be shown in the selected language. Language options include: English, French, Portuguese, German, Italian, Spanish and Polish.

T Series
Building on the quality and technology that is built into the S series, Tinius Olsen offers the T series of machines to complement the popular and successful S series. The T series models have similar specifications to the S series, but they talk directly with a standard PC running a data analysis software package, via a high speed RS232 in both ASCII and super high speed binary modes.

Common Features
The S and T series use rapid change Z beam loadcells that allow for simple and quick 'sizing' of the machine to an appropriate capacity for the test. These loadcells have an accuracy of +/-0.5% of the applied load value, from 2% to 100% of the loadcell capacity.
The S and T series have a huge assortment of specimen grips and fixtures available, allowing the selection of an ideal grip for your application.

Key Features:
PC control via high speed RS232 using ASCII mode and super high speed binary mode
Force accuracy of +/-0.5% of applied load across the loadcell display range
Machines are proof loaded to 200% of capacity
Displacement resolution of 0.0001mm (T series in binary mode)
Speed resolution of 0.001 mm/min
Built-in intelligent active force and displacement alarm system
32 bit precision motor controller
150% mechanical overload capacity on each loadcell
20% digital load tare while maintaining full load cell capacity
Automatic motor drive alarms that monitor over/under voltage, current and temperature.

Load measurement accuracy: +/- 0.5% of applied load from 2% to 100% capacity
Extended range down to 1% capacity with accuracy of +/- 1% of indicated load.
Position measurement accuracy: 0.01% of reading or 0.001mm, whichever is greater
Speed accuracy: ±0.005% of set speed
Operating temperature range: 32 to 100 degrees F (0 to 38 degrees C)
Storage temperature range: 14 to 115 degrees F (-10 to 45 degrees C)
Humidity range: 10% to 90% non-condensing, web bulb method
Power: Standard optional voltages 220/240VAC, 50-60 Hz, 2000W
Power must be free of spikes and surges exceeding 10% of the nominal voltage.

1. Load weighing system meets or exceeds the requirements of the following standards: ASTM E4, EN 10002-2, BS 1610, DIN 51221, ISO 7500-1. Tinius Olsen recommends that systems are verified at installation in accordance with ASTM E4 and ISO 75001.
2. Strain measurement system meets or exceeds the requirements of the following standards: ASTM E83, EN 10002-4, BS 3846 and ISO 9513.
3. These models conform to all relevant European CE Health and Safety Directives EN 50081-1, 580081-1, 73/23/EEC, EN 61010-1
4. Specifications are subject to change without notice
